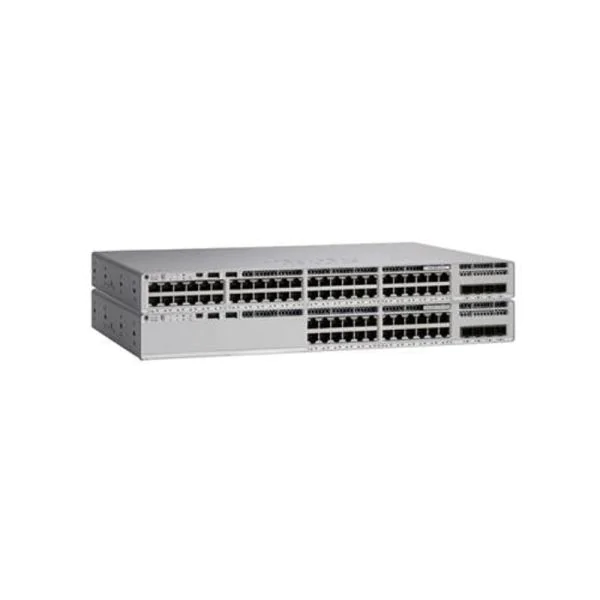

Cisco Catalyst C9200L-24PXG-4X-A Switch

Name: Cisco Catalyst C9200L-24PXG-4X-A Switch
SKU: 1030
Availability: InStock

€3,750

• High-Density, Flexible Port Configuration: Features 24 full PoE+ ports, including 8 multi-gigabit ports (up to 10G) and 16 1G ports, plus four 10G SFP+ fixed uplinks for high-speed connectivity.

• Enterprise-Class Performance and Stacking: Delivers a switching capacity of 272 Gbps and a forwarding rate of 214.28 Mpps, with an 80 Gbps backplane stacking bandwidth for building a resilient, unified system.

• Advanced Layer 3 Capabilities: Includes the Network Advantage software license, running on the powerful Cisco IOS XE operating system to support routing protocols such as OSPF, EIGRP, ISIS, and RIP.

• Integrated Security and Encryption: Provides enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems to protect network integrity.

• Built-in Resiliency: Designed for high availability with fixed redundant fans and support for a redundant, Field-Replaceable power supply to ensure continuous operation.

Category: Uncategorized

Description
Reviews (0)

Description

The Cisco Catalyst C9200L-24PXG-4X-A is a high-performance, stackable access switch engineered to extend the power of intent-based networking to a broad range of enterprise campus and branch deployments. As a member of the acclaimed Catalyst 9000 family, this switch delivers a secure, always-on, and IT-simplified experience, providing a robust foundation for modern network infrastructures without compromise.

Featuring 24 full Power over Ethernet Plus (PoE+) downlink ports, the C9200L-24PXG-4X-A offers exceptional connectivity flexibility, with eight multi-gigabit (mGig) ports scaling up to 10G for high-speed devices and sixteen 1G ports for standard endpoints. High-speed aggregation to the network core is enabled by four fixed 10G SFP+ uplinks, ensuring ample bandwidth for demanding applications.

Powered by the UADP 2.0 Mini ASIC with an integrated CPU, the switch delivers optimized scale with a switching capacity of 272 Gbps and supports a resilient 80 Gbps stacking bandwidth. Running on the Cisco IOS XE operating system with a Network Advantage license, it provides advanced Layer 3 capabilities, including OSPF, EIGRP, and RIP. The platform integrates seamlessly with Cisco’s Software-Defined Access (SD-Access) architecture for policy-based automation, enhanced security with AES-128 MACsec encryption, and advanced network monitoring via Full Flexible NetFlow.

Engineered for operational efficiency and built-in resiliency with redundant fans and power supply options, the Cisco Catalyst C9200L-24PXG-4X-A is the strategic solution for organizations seeking to modernize their network access layer with enhanced performance and security.
